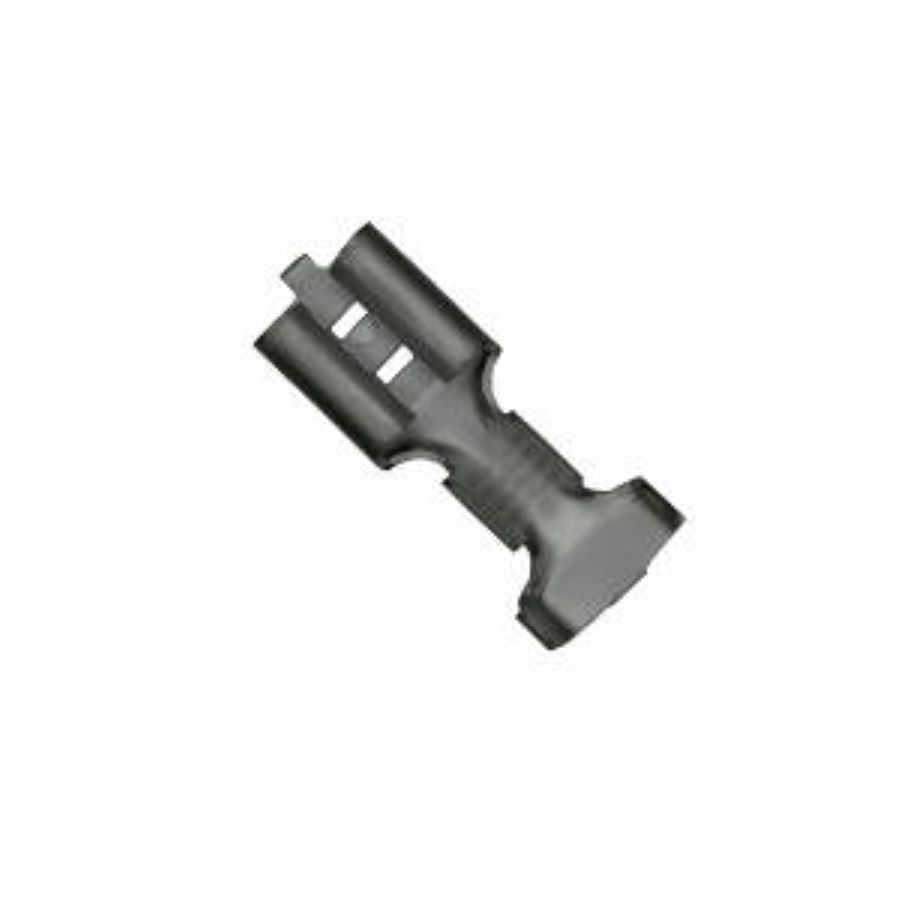

60635-1
Manufacturer:
TE Connectivity
Mfr.Part #:
60635-1
Datasheet:
Description:
Terminals Cable 10 AWG Female
| Parameter | Value |
|---|---|
| Length | 19.69 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 8.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 6.99 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 10 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 14 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 6.985 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 66744
Distributors
pcbx
pcbxUnit Price$0.62808
Ext.Price$0.62808
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62808 | $0.62808 |
| 10 | $0.31404 | $3.14040 |
| 50 | $0.24157 | $12.07850 |
| 100 | $0.18582 | $18.58200 |
| 500 | $0.14294 | $71.47000 |
| 1000 | $0.10995 | $109.95000 |
| 3000 | $0.08458 | $253.74000 |
| 5000 | $0.06506 | $325.30000 |
| 10000 | $0.05849 | $584.90000 |
| 30000 | $0.05258 | $1577.40000 |
